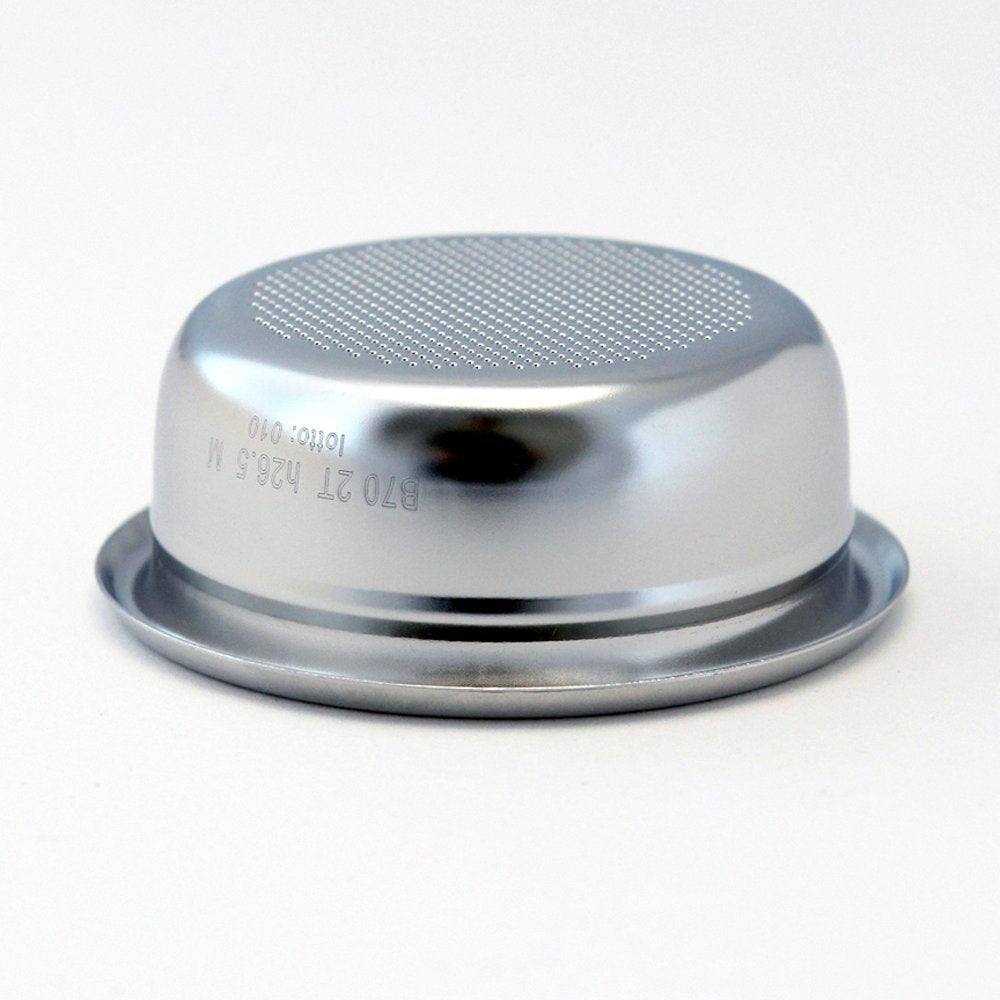

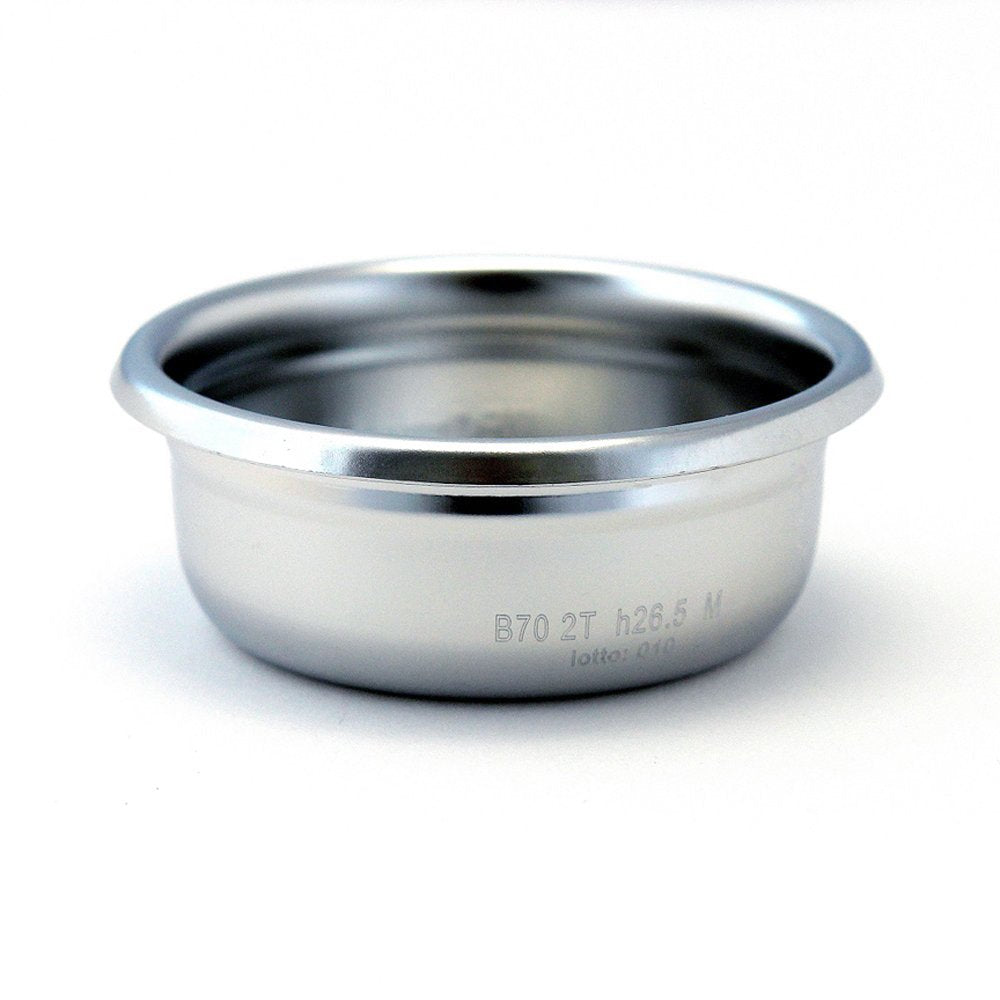

IMS Filter Basket for 58mm Portafilters, High Extraction

Q: What does “high extraction” mean?

“High extraction” means the filter basket is designed to help you get more flavor, aroma, and dissolved solids out of your coffee grounds during brewing. In practical terms, a high-extraction basket: Has a precise hole pattern (often concentrated in a specific area, like the “M” type by IMS) Promotes even water flow through the puck Allows you to use finer grinds without choking the shot Results in a richer, more balanced espresso —with more body, crema, and nuanced flavors It's especially appreciated by home baristas aiming for café-level results and those who enjoy light to medium roasts , which benefit from a more thorough extraction.

Q: Is it safe to wash this filter basket in a dishwasher?

Yes, technically it is safe to wash an IMS filter basket in the dishwasher, as it’s made of high-quality stainless steel. However, it's not recommended for a couple of reasons: Harsh detergents and high temperatures can dull the finish or affect any coatings (like nanotech coating, if present). Dishwasher residues may build up in the tiny holes and affect coffee flavor or flow. Best Practice: Hand wash with warm water and mild detergent. Use a soft brush to clean out the holes if needed. This will maintain performance and longevity.

$21.90

Tax included Shipping calculated at checkout.

This IMS Precision Double Espresso Basket, crafted for high extraction, perfectly suits medium to light roast coffees. Its innovative shape and "M" hole pattern feature more and closer holes to significantly enhance water flow and extraction.

Style High Extraction

Shot

Size

Product variants

Description

Optimized for Medium to Light Roasts
This filter basket is specially designed to enhance extraction with medium to light roast coffees. The closer spacing of the holes supports a finer grind, allowing for improved water flow and higher extraction yields. The result is a fuller body, richer crema, and more pronounced sweetness with bright, ripe fruit notes.

M-Type Hole Pattern for High Extraction
IMS’s proprietary "M" hole pattern features a concentrated layout engineered for even water dispersion. This design promotes homogeneity in flavor, helping you achieve a full-bodied espresso with exceptional crema and clarity.

Thoughtful Internal Shape
The basket features a rounded internal corner, creating a smooth transition between the walls and base. This eliminates dead zones during extraction by directing water more evenly across the coffee bed - especially important for consistent saturation and balanced flavor development.

Easy to Clean, Built to Perform
The seamless, polished interior prevents coffee grounds from sticking in corners, making cleaning quick and efficient. This not only extends the lifespan of the basket but also helps maintain shot consistency over time.

Compatibility Note
To fit this basket into your stock portafilter, the plastic insert at the bottom of the portafilter must be removed.

Compatibility

Fits some, but not all models of Ascaso, Astoria, Bezzera, Bfc, Bianchi, Brasilia, Conti, DID Orchestrale, Faema – E61, Fiorenzato, Fracino, Grimac, Iberital, Kees Van Der Westen, La Marzocco, La Nuova Era, La Pavoni, La Scala, Magister, Nuova Simonelli, Promac, Quality espresso, Rancilio, Rocket, Royal First, SAB, Sanremo, Slayer, SV, Synesso, VFA, Vibiemme, Victoria Arduino, Wega.

Instructions & Care

Before first use: Rinse thoroughly with warm water or run a blank shot through your machine with the basket in place to remove any manufacturing residue.

Daily cleaning: After each use, knock out the puck and rinse the basket under hot water to remove coffee oils and residue.

Monthly maintenance: Soak in a solution of espresso machine cleaner and hot water for 15–30 minutes. Rinse thoroughly before reuse.

Avoid abrasive tools: Use a soft brush or cloth to clean. Do not use steel wool or harsh scouring pads as they may damage the surface.

Storage: Keep the basket dry and store it in a clean environment when not in use.

What's Included?

One filter basket in an original IMS box.

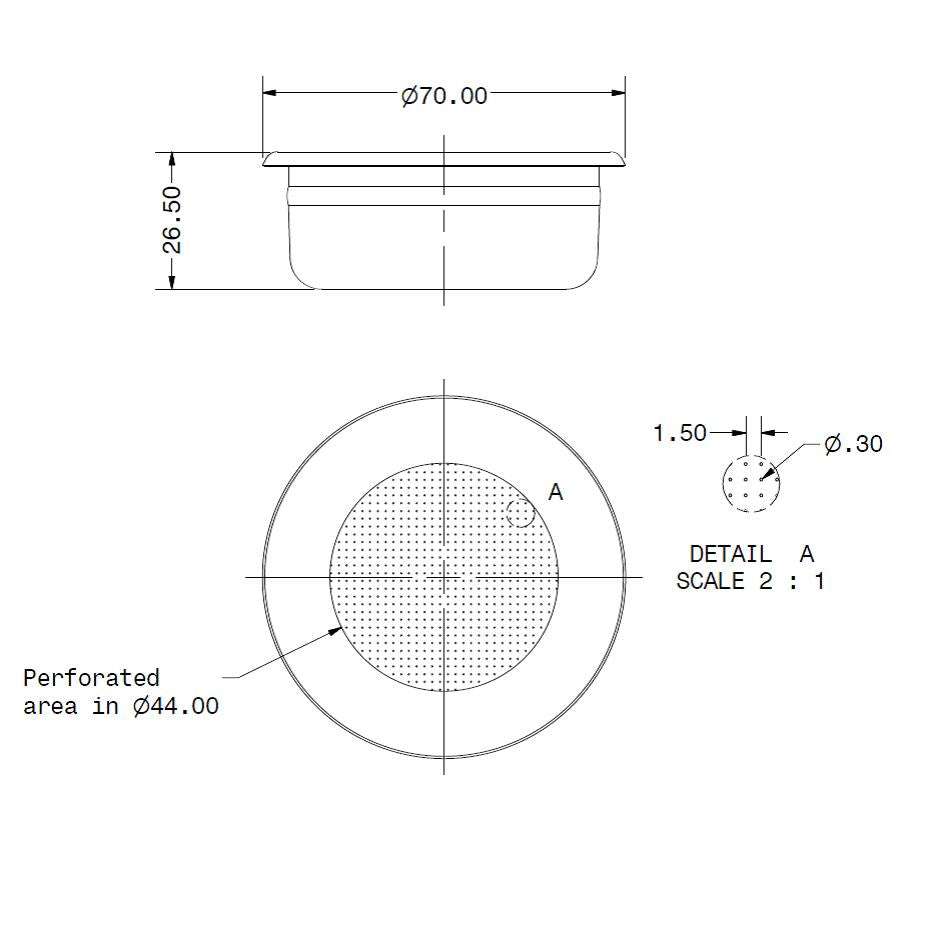

Specifications

Material

Stainless steel AISI304 Food Safe.
Roast

Light
Grind

Extra-fine, best quality
Taste profile

Fruitness more crema
Portafilter

58 mm
Height

h26.5 - 26.5mm
Hole pattern

641 holes in Hexagonal hole M design pattern
External border

Ø 70 mm (B70)
Tamper

58 - 58.5 mm tamper
Average capacity

16/20 gr
Ridge

Ridgeless
Manufacturer's code

B702TH26.5M

Reviews (0)

The right filter for the right coffee

Choosing the right coffee filter can make all the difference in creating the perfect cup.

Compare with similar items

A table comparing the facets of 5 products
Facet	IMS Filter Basket for 58mm Portafilters, All-in-One View details	IMS Filter Basket for 58mm Portafilters, All-in-One Single View details	IMS Filter Basket for 58mm Portafilters, Big Bang View details	IMS Filter Basket for 58mm Portafilters, Convex View details	IMS Filter Basket for 58mm Portafilters, High Extraction View details
Price
Price	$29.90	$29.90	$24.00	From $24.00	$21.90
By
By	E&B Lab	E&B Lab	IMS	IMS	IMS
Hole pattern
Hole pattern	All-in-One hole pattern – 253 holes in combination with photoetched membrane of 150 micron filtering power.	All-in-One hole pattern, 85 holes in combination with photoetched membrane of 150 micron filtering power.	585 holes in BIG BANG pattern (BB)	715 holes in Hexagonal hole E design pattern	641 holes in Hexagonal hole M design pattern
Grind
Grind	Pressure profiling	Pressure profiling	Conventional	Medium-fine	Extra-fine, best quality
Roast
Roast	Light to medium	Light to medium	Medium to dark	All	Light
Taste profile
Taste profile	Pressure profiling	Pressure profiling	Sweetness	Full-bodied, balanced	Fruitness more crema

Help & Advice

What does “high extraction” mean?

“High extraction” means the filter basket is designed to help you get more flavor, aroma, and dissolved solids out of your coffee grounds during brewing.

In practical terms, a high-extraction basket:

Has a precise hole pattern (often concentrated in a specific area, like the “M” type by IMS)
Promotes even water flow through the puck
Allows you to use finer grinds without choking the shot
Results in a richer, more balanced espresso—with more body, crema, and nuanced flavors

It's especially appreciated by home baristas aiming for café-level results and those who enjoy light to medium roasts, which benefit from a more thorough extraction.

Is it safe to wash this filter basket in a dishwasher?

Yes, technically it is safe to wash an IMS filter basket in the dishwasher, as it’s made of high-quality stainless steel. However, it's not recommended for a couple of reasons:

Harsh detergents and high temperatures can dull the finish or affect any coatings (like nanotech coating, if present).
Dishwasher residues may build up in the tiny holes and affect coffee flavor or flow.

Best Practice:

Hand wash with warm water and mild detergent. Use a soft brush to clean out the holes if needed. This will maintain performance and longevity.

Does this basket fit Gaggia Classic?

Yes it does.
